Snap Cast Pipe Forged Tube Concrete Pump Clamp Coupling

  • Snap Cast Pipe Forged Tube Concrete Pump Clamp Coupling
  • Snap Cast Pipe Forged Tube Concrete Pump Clamp Coupling
Tempat asal Cina
Nama merek SDBL
Sertifikasi ISO
Nomor model DN125
Kuantitas min Order 1 buah
Harga negotiable
Kemasan rincian Kardus
Waktu pengiriman dalam waktu 7 hari setelah pembayaran
Syarat-syarat pembayaran serikat barat, uang gram, t/t
Menyediakan kemampuan 500 lembar per bulan

Contact me for free samples and coupons.

Ada apa:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Detail produk
Nama produk Kopling penjepit jepret pompa beton Model NO. DN125
Ukuran 2"-8" Jenis Jepret, baut, baji, dapat disesuaikan
Kerah Flensa SK/HD Bahan 40cr
Cahaya Tinggi

Forged Tube Concrete Pump Clamp Coupling

,

Cast Pipe Concrete Pump Clamp Coupling

,

DN125 concrete pump coupling
Tinggalkan pesan
Deskripsi Produk

Concrete Pump Parts Snap Clamp Coupling/Cast Pipe Clamp Coupling/Forged Tube Clamp

1.Product description

These clamp coupling are popular in Europen and Asian Countries,quality and price is promised!Also we have the American specialized HD adjustable clamp coupling,working pressure is 180 bar,burst pressure is at least 200 bar.If we thickning the clamp coupling,quality is better,working pressure is 350 bar,burst pressure is 600 bar,each one weight is heavier,this kind of clamp coupling is usually used in Germany Schwing.

Product name Concrete pump snap clamp coupling
Model No. DN125
Size 2"-8"
Burst pressure 200 bar
Collar SK/HD Flange
Working pressre 130 bar
Material 40Cr
Techinic Forged /cast
Weight 3.9KGS
Type Snap,bolt,wedge,adjustable
Color Silver white/red/yellow/blue and so on

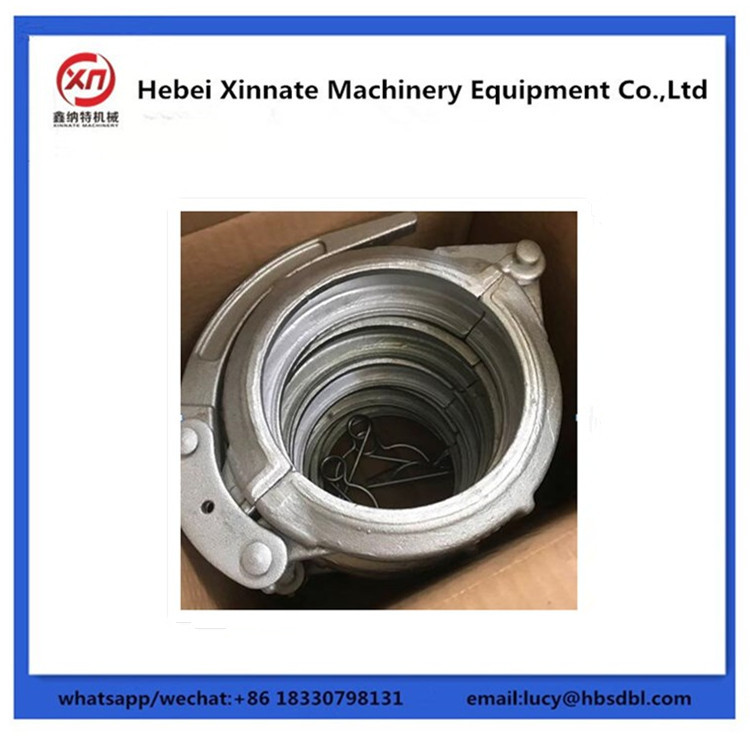

2.Clamp coupling real shot

Snap Cast Pipe Forged Tube Concrete Pump Clamp Coupling 0

3.Snap clamp coupling

Snap Cast Pipe Forged Tube Concrete Pump Clamp Coupling 1

4.Concrete pump clamp coupling schematic diagram



Snap Cast Pipe Forged Tube Concrete Pump Clamp Coupling 2

5.Other accessories in the factory

Snap Cast Pipe Forged Tube Concrete Pump Clamp Coupling 3

welcome to purchase!
