P3301 P4300 P5300 P7300 P7500 Pump Gearbox For Mixer Truck

  • P3301 P4300 P5300 P7300 P7500 Pump Gearbox For Mixer Truck
  • P3301 P4300 P5300 P7300 P7500 Pump Gearbox For Mixer Truck
  • P3301 P4300 P5300 P7300 P7500 Pump Gearbox For Mixer Truck
  • P3301 P4300 P5300 P7300 P7500 Pump Gearbox For Mixer Truck
  • P3301 P4300 P5300 P7300 P7500 Pump Gearbox For Mixer Truck
Tempat asal CINA
Nama merek Standard
Sertifikasi standard
Nomor model P3301/P4300/P5300/P7300/P7500
Kuantitas min Order 1 buah
Harga negotiable
Kemasan rincian Kardus
Waktu pengiriman 8 hari kerja
Syarat-syarat pembayaran serikat barat, uang gram, t/t
Menyediakan kemampuan 100pcs per minggu

Contact me for free samples and coupons.

Ada apa:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Detail produk
nama Gearbox pompa untuk truk pengaduk Ukuran P3301/P4300/P5300/P7300/P7500
Aplikasi digunakan pada truk mixer Jenis Paket Palet, Kotak Kayu
Menyediakan kemampuan 10000 Potongan/potongan per Tahun Jenis Sistem hidrolik dan sistem tenaga fluida air
Warna merah Asli dari pabrik Cangzhou
Bagian yang direalisasikan pegangan saluran, kotak kontrol rak, kabel kontrol, poros penggerak dan sebagainya
Cahaya Tinggi

P7500 pump gearbox

,

P5300 pump gearbox

,

P4300 pump gear box
Tinggalkan pesan
Deskripsi Produk

Pump Gearbox For Mixer Truck



There are many types of gearbox at stock . And have two types of gearbox , one is fluid water system , the other one is hydraulic system . And the water fluid system is popular in Saudi Arabia .



Technology as below:

Specification P3301 P3301 P4300 P5300 P7300 P7500
Drum volume 7M3 8M3 9M3 10M3 12M3 12M3
Maximum installation angle 15 12 12 11 10 10
Maximum input speed 2500 l/min 2500 l/min 2500 l/min 2500 l/min 2500 l/min 2500 l/min
Total reduction ratio i=141.0 i=141.0 i=135.3 i=135.3 i=144.3 i=144.3
Output torque 42.000Nn 48.000Nn 54.000Nn 60.000Nn 72.000Nn 72.000Nn
Reducer weight without oil 242kg 242kg 335kg 340kg 350kg 370kg
The amount of Oil 7.5dm3 7.5dm3 11.5dm3 11.5dm3 11.5dm3 16.5dm3



Hydraulic system gearbox for mixer truck

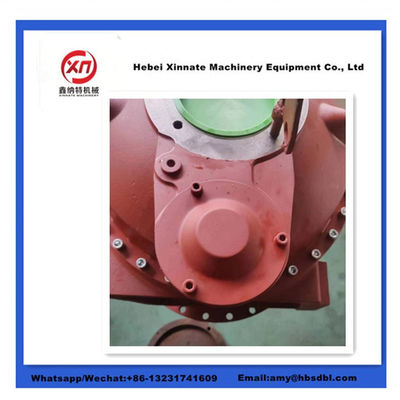

P3301 P4300 P5300 P7300 P7500 Pump Gearbox For Mixer Truck 0

Water sysytem fluid power gearbox for mixer truck , which is popular in Saudia Arabia

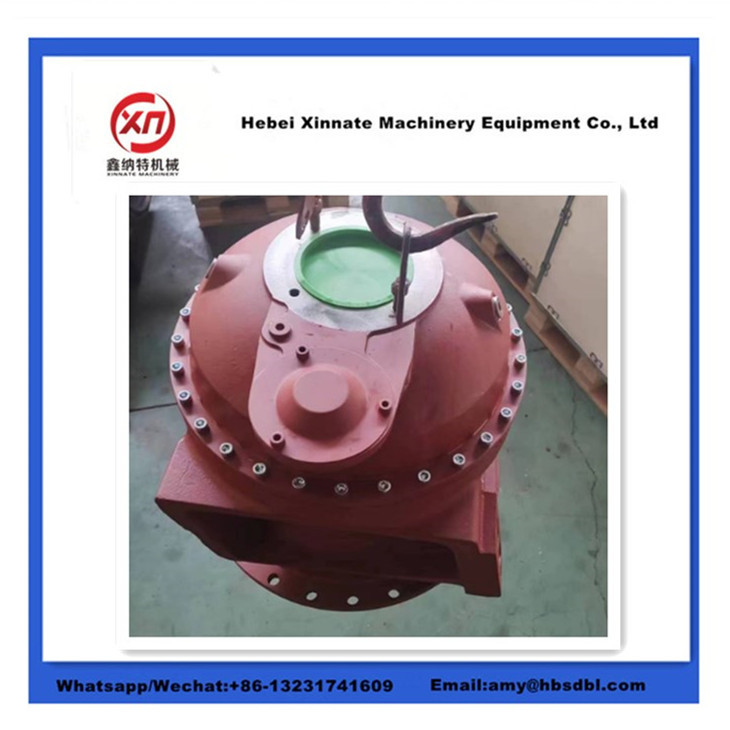

P3301 P4300 P5300 P7300 P7500 Pump Gearbox For Mixer Truck 1

Application : Gear box for mixer truck

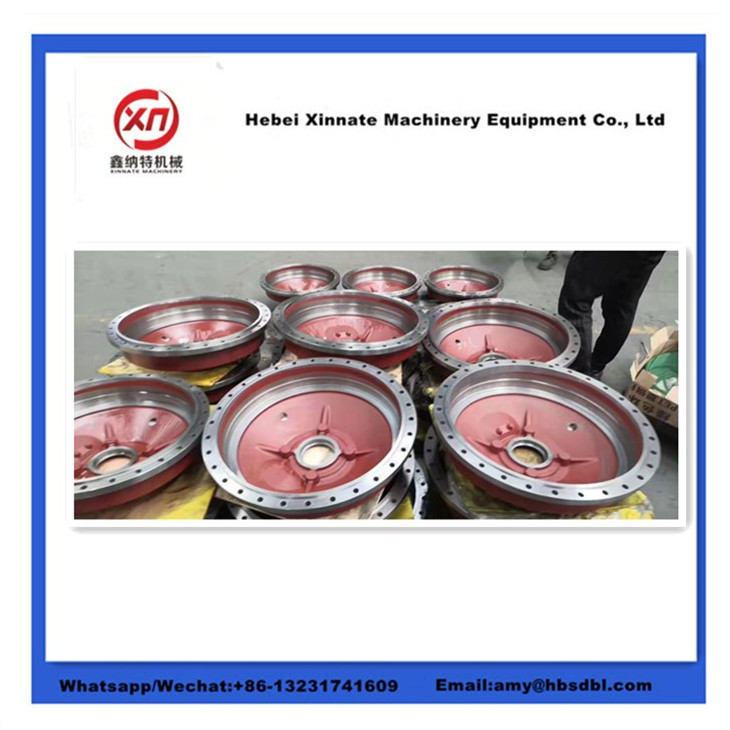

P3301 P4300 P5300 P7300 P7500 Pump Gearbox For Mixer Truck 2



Other gearbox : we have many different types of pump gearbox at stock

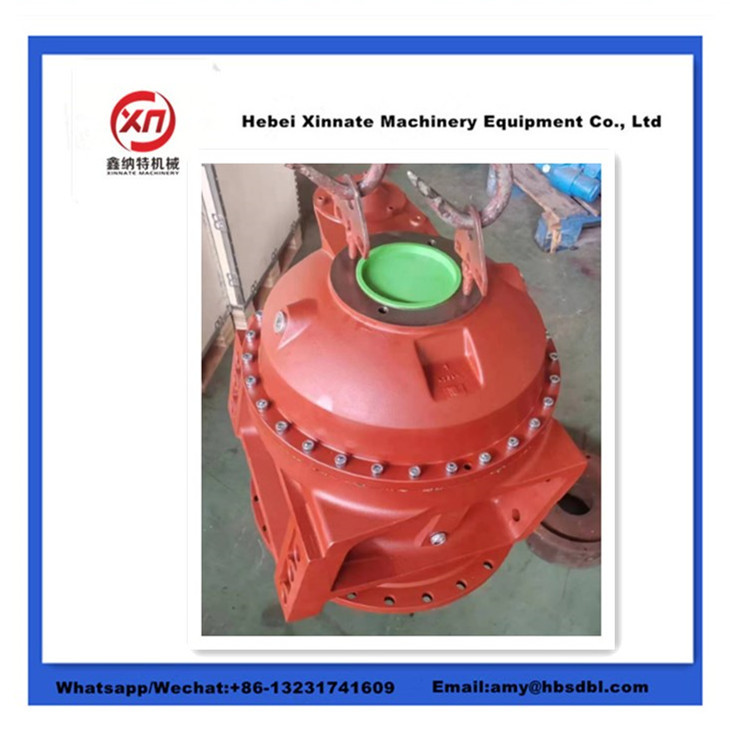

P3301 P4300 P5300 P7300 P7500 Pump Gearbox For Mixer Truck 3



Other mixer truck spare parts at stock : FAG bearing , chute handle ,single lever rack control box and double lever chute handle , gear box , cooler fan and so on

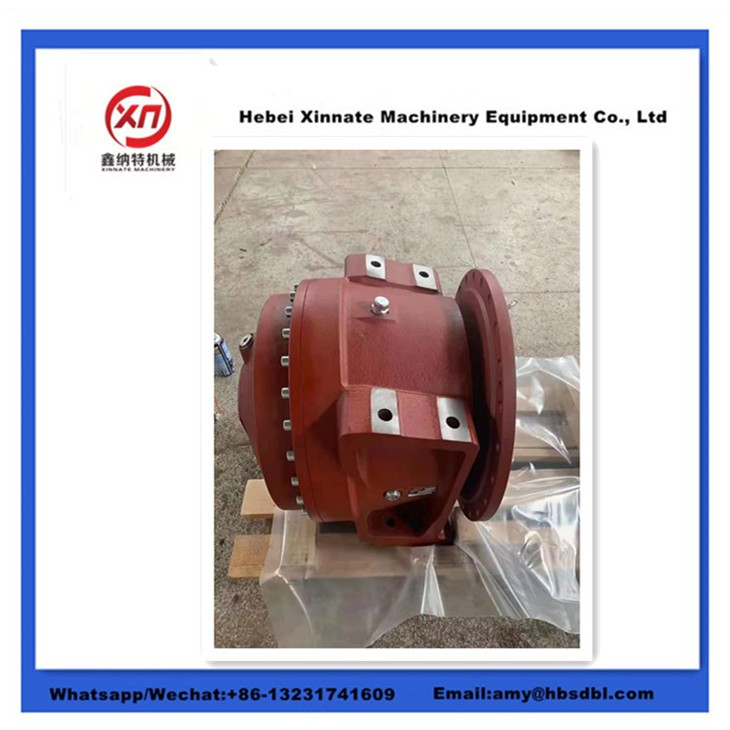

P3301 P4300 P5300 P7300 P7500 Pump Gearbox For Mixer Truck 4
